♦ Highly sensitive sensor/ Rechargeable Lithium Battery/ three alarm methods/ IP67
>>>Paramenters:
|
Dimension
|
133 L×70 W×36 H mm
|
|
Weight
|
Approx. 300g
|
|
Sampling
|
Pump/ Diffusion
|
|
Working Temperature
|
- 10 °C ~ + 44 °C
|
|
Environmental Humidity
|
15%~90% RH (non-condensing)
|
|
Power
|
3.7V rechargeable lithium battery, continuously work for over 12 hours
|
|
Sensor Life
|
One year for combustible gas sensor; two years for oxygen and toxic gases sensor
|
|
Display
|
LCD display
|
|
Alarm Mode
|
Acousto optic alarm
|
|
Explosion-proof Grade
|
ExibIIC T3
|
|
Warranty
|
1 year
|
|
GAS TYPE
|
DETECTION RANGE
|
RESOLUTION
|
RESOLUTION
|
|
O2
|
0-30%Vol
|
0.1%Vol
|
T90≤15s
|
|
CO
|
0-1999ppm
|
1ppm
|
T90≤25s
|
|
H2S
|
0-100ppm
|
0.1ppm
|
T90≤30s
|
|
CH4(IR)
|
0-5%Vol
|
0.01%Vol
|
T90≤60s
|
COMMONLY USED GAS DETECTION LIST
|
Gas Type
|
Detection Method
|
Detection Range
|
Operating temperature
|
Resolution
|
T90 Response Time
|
|
O2
|
Electrochem
|
0-25%vol/30%vol
|
-30℃~+60℃
|
0.1%vol
|
T90≤20s
|
|
CO
|
Electrochem
|
0-100ppm/500ppm/2000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤20s
|
|
H2S
|
Electrochem
|
0-100ppm/200ppm/1000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
NO2
|
Electrochem
|
0-10ppm/30ppm/100ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
NO
|
Electrochem
|
0-100ppm/200ppm/1000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤50s
|
|
CL2
|
Electrochem
|
0-20ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
H2
|
Electrochem
|
0-2000ppm/4%vol
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
SO2
|
Electrochem
|
0-200ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
CL2
|
Electrochem
|
0-20ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
HCL
|
Electrochem
|
0-30ppm/200ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
HCN
|
Electrochem
|
0-10ppm/200ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
NH3
|
Electrochem
|
0-100ppm/500ppm/1000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤25s
|
|
O3
|
Electrochem
|
0-1ppm/10ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
PH3
|
Electrochem
|
0-5ppm/10ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
CLO2
|
Electrochem
|
0-3ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤50s
|
|
H2
|
Catalytic
|
100%lel
|
-40℃~+60℃
|
1%lel
|
T90≤20s
|
|
CH4(CA)
|
Catalytic
|
0-100%lel
|
-40℃~+60℃
|
1%lel
|
T90≤20s
|
|
CH4(IR)
|
IR
|
0-5%vol/100%vol
|
-40℃~+60℃
|
0.1%vol
|
T90≤20s
|
|
VOCs
|
PID
|
0-50ppm/200ppm/1000ppm/5000ppm
|
-40℃~+60℃
|
0.1ppm
|
T90≤20s
|
|
CO2(IR)
|
IR
|
0-5%vol/100%vol
|
-40℃~+60℃
|
0.01%vol
|
T90≤20s
|
|
C3H8(IR)
|
IR
|
0-2%vol/100%vol
|
-40℃~+60℃
|
0.01%vol
|
T90≤20s
|
|
CxHy(IR)
|
IR
|
0-100%lel
|
-40℃~+60℃
|
1%lel
|
T90≤20s
|
|
SF6(IR)
|
IR
|
0-1000ppm/2000ppm
|
-40℃~+60℃
|
1ppm
|
T90≤20s
|
IP GRADE: IP67 testing:
Imported Sensors:
Honeywell & Alphasense & CITY & DA SGX
K60-IV meet CE standard, ATEX certificates will be issued in October (10/2025).
>>>Application Scenario:

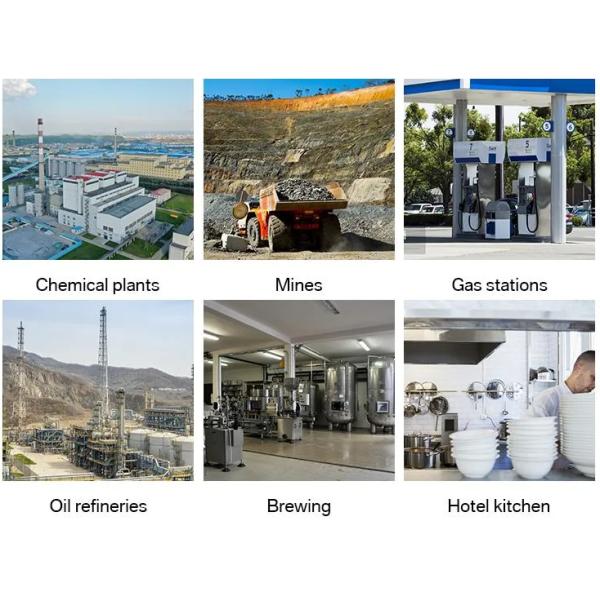

♦ Widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas supply, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
